How Salt Spray Destroys Heavy-Duty Hinges — And How to Stop It

In my decade of industrial design consulting, I have participated in countless failure analysis meetings for equipment breakdowns. These range from heavy-duty trucks operating on freezing interstate highways to constant temperature and humidity chambers running precisely in laboratories, and even 5G base station cabinets exposed to the elements for years.

I have discovered a startling commonality: many pieces of equipment costing tens or even hundreds of thousands of dollars face severe warranty crises due to a single heavy-duty hinge worth less than $20.

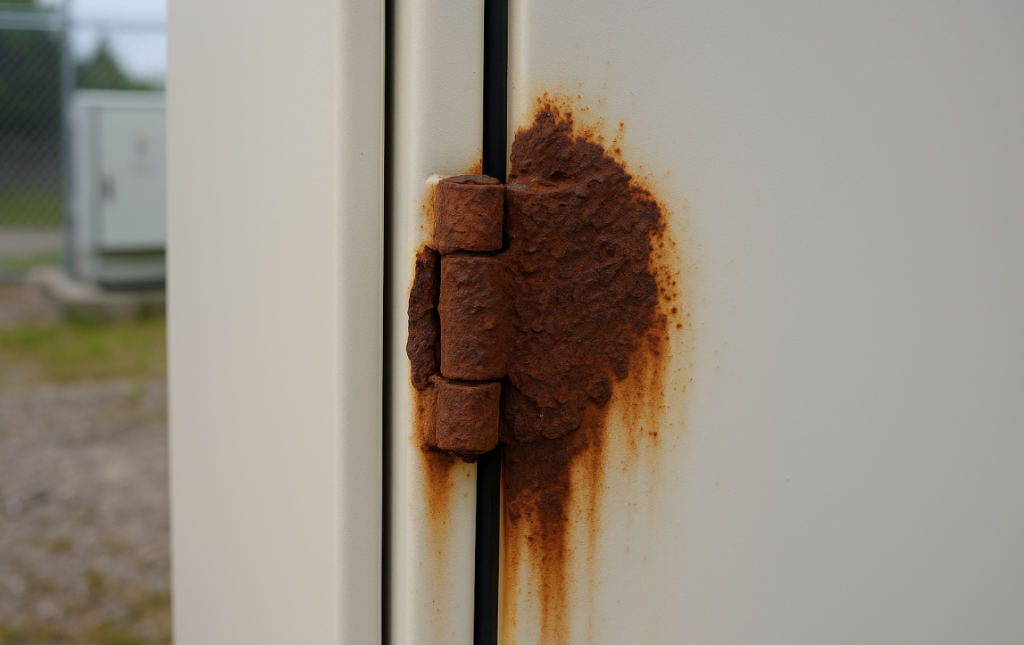

In my observation of typical outdoor industrial cabinet projects, seal failure caused by hinge corrosion often triggers a chain reaction of damage to the precision electronic components inside. This is not just an aesthetic issue of “looking rusty.” For cold chain transport vehicles or environmental testing equipment, hinge failure means thermal leakage, increased energy consumption, and even total loss of core functionality.

Based on real engineering cases I have handled (focusing on specialty vehicles and precision instrument cabinets) and combined with international standards like ASTM B117 and ISO 9227, this article provides a detailed technical guide for selecting anti-corrosion hardware.

The Real Threat of Salt Spray to Industrial Equipment

We need to redefine the “corrosive environment.” For industrial equipment, salt spray exists far beyond just the seaside.

The Nightmare for Mobile Equipment: Road De-icing Salts

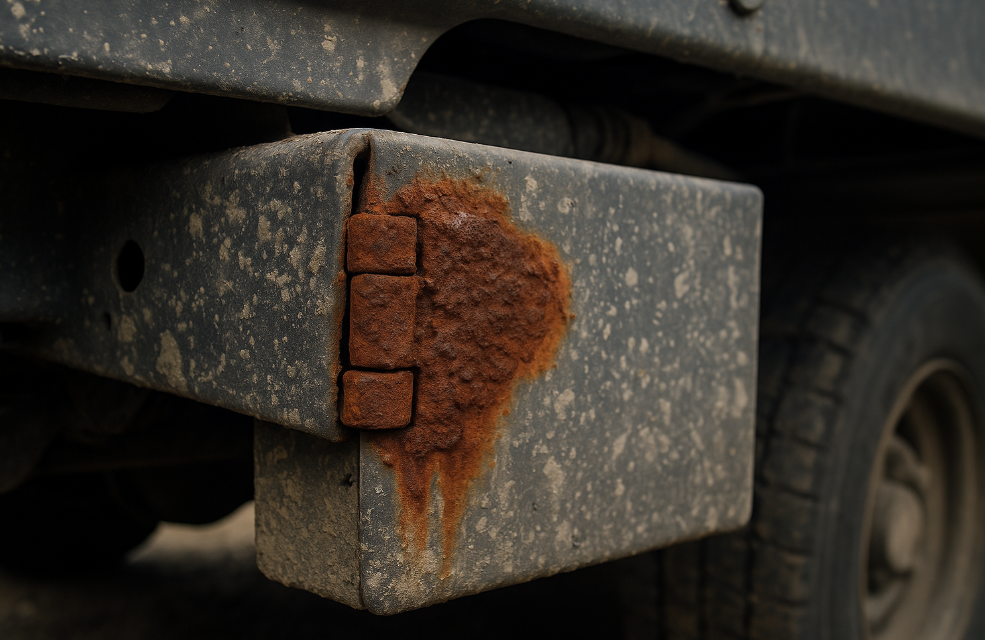

I once consulted for a North American heavy-duty truck manufacturer. Their vehicles experienced alarming corrosion rates on chassis and toolbox hinges when traversing northern interstate highways during winter.

The culprit was not just water, but de-icing salts (Magnesium Chloride or Calcium Chloride).

• High Concentration Adhesion: Salt spray mixed with sand and mud is kicked up by high-speed driving, impacting the hinge surface like sandblasting.
• Chemical Activity: Magnesium chloride is highly hygroscopic even after drying. This means that even if the truck is parked in a dry garage, the salt on the hinge surface continues to absorb moisture from the air, driving continuous electrochemical corrosion.

Hidden Dangers for Precision Equipment: High Heat and Humidity

In the design of Constant Temperature and Humidity Chambers, I often see engineers overlook the corrosion resistance of door hinges.

Although the laboratory environment appears clean, the interior of the test chamber often maintains a “Double 85” condition (85°C / 85% RH) for extended periods.

• Condensation Effect: As metal components, hinges conduct heat quickly and are often the first place condensation gathers.
• Accelerated Oxidation: High temperatures accelerate oxidation reactions exponentially. If the hinge material is not passivated specifically for this “sauna” environment, rust will occur rapidly, potentially contaminating the test samples.

Electrochemical Reaction Mechanism: Chloride Ion Penetration

Whether it is road salt water or condensate on a cabinet surface, the core mechanism of corrosion remains the same:

• Penetration: Chloride ions (Cl-) have an extremely small radius and can penetrate the natural oxide film on metal surfaces.
• Pitting: This creates deep pits on stainless steel surfaces.
• Crevice Corrosion: The tiny gaps between the hinge pin and the leaf are breeding grounds for stagnant electrolyte.

Material Selection: Precision Matching Based on Application Scenarios

There is no “best” material, only the “most suitable” one. Based on projects I have managed, here are specific recommendations for different equipment.

304 vs. 316 Stainless Steel: Which is the Choice for Cabinets?

We must introduce a key metric: the Pitting Resistance Equivalent Number (PREN).

Formula reference (ASTM G48): $PREN = \%Cr + 3.3 \times \%Mo + 16 \times \%N$.

Application Scenario	Recommended Material	Technical Rationale
Indoor Test Chambers	SS304	Indoor environment with no direct salt spray contact. However, under high humidity conditions, 304 requires proper passivation.
Food Machinery / Medical Cabinets	SS316	Often cleaned with chlorine-containing disinfectants. 304 cannot withstand long-term corrosion from sodium hypochlorite.
Coastal Outdoor Cabinets	SS316 / 316L	Must contain 2.0% – 3.0% Molybdenum (Mo). Molybdenum effectively stabilizes the passivation film and resists chloride ion pitting.

Real-World Case Study:

In a 2022 outdoor power cabinet project, the client switched from the specified 316 stainless steel to 304 to save 15% on costs. The equipment was installed at a substation 3 kilometers from the coastline. In less than 8 months, large areas of red rust appeared on the hinge surfaces, forcing the client to spend a significant amount to replace all hardware on-site.

Application Boundaries for Carbon Steel in the Vehicle Industry

For heavy trucks and construction machinery, a full stainless steel solution is often too expensive and may lack sufficient strength (as stainless steel is softer). Carbon steel is acceptable, but it must rely on extremely reliable surface treatments.

My Advice:

If you use carbon steel hinges on vehicle toolboxes or chassis guards, never rely on simple zinc plating. Gravel impact from the road will instantly destroy the zinc layer.

Duplex Stainless Steel and Special Alloys

For extreme environments, such as valve box hinges on tankers carrying corrosive chemicals or instrument cabinets on offshore drilling rigs, standard stainless steel is insufficient.

I recommend considering 2205 Duplex Stainless Steel. Its strength is double that of 316, and its corrosion resistance (PREN > 35) far exceeds ordinary austenitic stainless steel, making it ideal for resisting stress corrosion cracking caused by vehicle vibration.

Surface Treatment Processes: Armor for Carbon Steel

If your equipment (such as generator soundproof enclosures or excavator cabs) must use high-strength carbon steel hinges, the surface treatment process is the lifeline.

Limitations of Traditional Zinc Plating

According to ASTM B633 standards, even with thick color zinc, the time to Red Rust in Neutral Salt Spray (NSS) testing is typically under 96 hours.

For telecom cabinets exposed to long-term outdoor elements, this is far from enough. I have seen countless galvanized hinges turn into lumps of rust after one year of outdoor operation, making cabinet doors impossible to open.

Automotive Grade Process: E-Coating

This is the gold standard in the heavy truck industry.

• Process Advantage: Charged paint particles are adsorbed onto the metal surface. It perfectly covers complex hinge structures, including the inside of the pin.
• Data Support: High-quality Cathodic E-Coating can withstand 500-1000 hours of salt spray testing.
• Application Suggestion: For truck hood hinges and side door hinges, E-Coating is the high cost-performance choice.

High-Performance Powder Coating

For outdoor power cabinets, powder coating is usually used to match the cabinet color.

Note: Not all powders are anti-corrosive.

I once handled a complaint where the coating on a batch of outdoor cabinet hinges peeled off in flakes after six months.

Root Cause Analysis: The supplier used indoor-grade epoxy powder (not UV resistant, leading to chalking) and skipped the pre-treatment.

Correct Approach:

1. Must use Outdoor-Grade Polyester powder.
2. Must include Phosphating or Zirconization pre-treatment to increase adhesion.
3. For severe environments, I suggest a “Primer + Topcoat” dual-layer spray system.

Composite Coatings: The Ultimate Protection

On specialty vehicles (such as salt spreaders or snow plows), I strongly recommend a composite scheme of “Zinc-Nickel Alloy Plating + Sealer” or “Zinc Plating + E-Coating.” This combination utilizes the dual mechanism of sacrificial anode (zinc) and physical barrier (coating), with salt spray test results often exceeding 1200 hours.

Design Pitfalls: Structural Causes of Corrosion

As mechanical engineers, we cannot simply blame the material. Many corrosion issues are hidden dangers we plant during the CAD drafting stage.

Galvanic Corrosion: The Pain of Truck Bodies

Modern cold chain trucks and vans extensively use aluminum alloy skins to reduce weight.

Typical Error: Riveting stainless steel hinges directly onto aluminum door panels.

According to MIL-STD-889, there is a huge potential difference between stainless steel and aluminum. Under the action of rainwater or road salt water, the aluminum plate acts as the anode and is sacrificed.

Consequence: The aluminum around the hinge pulverizes and perforates, eventually causing the hinge and the door panel to fall off together.

Solution:

• Physical Isolation: You must add EPDM insulating gaskets between the hinge and the door panel.
• Fastener Isolation: Use screws with nylon washers, or fasteners coated with Dacromet/Geomet.

Water Accumulation Structures: Cabinet Door Dead Zones

When designing outdoor control cabinets, please check the hinge installation orientation.

I have seen a top-opening door design where the piano hinge formed a natural “rain gutter.” Rainwater mixed with dust accumulated between the hinge knuckles. After drying, the salt concentration became extremely high.

Improvement Suggestions:

• Choose streamlined, smooth-surfaced hinges whenever possible.
• If a groove must exist, design drainage holes at the lowest point.
• For Constant Temperature and Humidity Chambers, hinges should be installed outside the sealing strip to avoid direct contact with the high-humidity air inside the chamber (if the structure allows).

Fit Clearance and Micro-Motion Wear

Vibration during vehicle operation causes minute relative motion (micro-motion wear) between the hinge pin and the bushing. This grinds away the protective layer, producing iron oxide powder.

My Advice:

In heavy-duty equipment hinges, integrate Engineering Plastic Bushings (e.g., IGUS) or Oil-Impregnated Bronze Bushings. They not only provide lubrication but, more importantly, act as physical isolation, preventing friction oxidation caused by direct iron-on-iron contact.

Deep Dive into Technical Standards: How to Verify Quality

Do not be fooled by a supplier’s piece of paper saying “Qualified.” When procuring heavy-duty hinges, you need to verify based on standards.

ASTM B117 and ISO 9227

These are the most common Neutral Salt Spray (NSS) test standards.

Key Insight: Test hours $\neq$ Outdoor service life.

• 24 hours of NSS testing roughly corresponds to a few days of exposure intensity in a coastal environment.
• For outdoor cabinet hinges, I recommend setting an acceptance standard of 720 hours with no Red Rust.
• For vehicle chassis hinges, I recommend setting a 500 hours no Red Rust standard (considering cost balance).

Acceptance Traps in Real Cases

I once audited a supplier’s test report that stated “Passed 1000 Hours Test.”

Upon checking the detailed data, I found they had already developed 3% red rust area at 500 hours, but according to their loose internal enterprise standards, this was still judged as a “Pass.”

Actionable Advice: Explicitly reference the ASTM D610 standard in your technical agreement and stipulate: “Within the specified time, the rust grade must reach Grade 9 or above (i.e., rust area < 0.03%).”

Special Testing for Constant Temperature and Humidity Chambers

For this type of equipment, a single salt spray test is insufficient. I recommend adding Cyclic Humidity Tests. Simulating the condensation process when the equipment switches between running and stopping better reflects the hinge’s corrosion resistance in real working conditions.

Maintenance and Upkeep Recommendations

As an equipment manufacturer, you need to provide clear guidance in the user manual.

1. Trucks and Vehicles:Advise fleet operators to thoroughly wash the chassis and hinge gaps after winter to remove residual de-icing salts. After cleaning, spray with rust-preventative oil that has Water Displacing properties.
2. Outdoor Cabinets:Inspect seals regularly (every six months) for aging. If the seal fails, salt-laden rainwater will seep into the cabinet and corrode the hinge fixing nuts from the back.
3. Grease Selection:Ordinary lithium grease washes away easily. For heavy-duty hinges, I recommend using Synthetic Water-Resistant Grease, preferably containing PTFE. It forms a durable hydrophobic film on the metal surface.

Conclusion

In the world of heavy industrial equipment, corrosion prevention is a silent war.

• For Constant Temperature and Humidity Chambers, corrosion prevention ensures the purity and accuracy of test data.
• For Heavy-Duty Trucks, corrosion prevention fights against road salt spray and high-intensity vibration.
• For Outdoor Cabinets, corrosion prevention ensures decades of all-weather protection.

Regardless of your industry, the four steps of selecting the right material (316 SS vs. E-Coated Carbon Steel), executing strict surface treatment processes, avoiding design traps like galvanic corrosion, and strictly verifying against ASTM standards are indispensable.

Next Step:

I suggest you immediately check the hinge specifications in your current equipment Bill of Materials (BOM). If the application is outdoor or severe, confirm whether “SUS316” material or “ASTM B117 > 500H” test requirements are explicitly marked. If you find early rusting on existing hinges, try adding an insulating gasket to the mounting surface; this is often the lowest-cost first step to solving the problem.
