Swivel Torque Hinge for Industrial Enclosures

As a key component in industrial equipment, swivel torque hinges can precisely control the opening and closing speed and hovering angle of chassis door panels through the built-in torque adjustment mechanism. Compared with traditional hinges, it significantly improves the safety, durability and operational efficiency of the equipment, especially for high-frequency industrial scenarios. This article discusses the selection strategy, technical advantages and typical applications of this component to provide professional reference for engineering design and procurement decisions.

What is a swivel torque hinge?

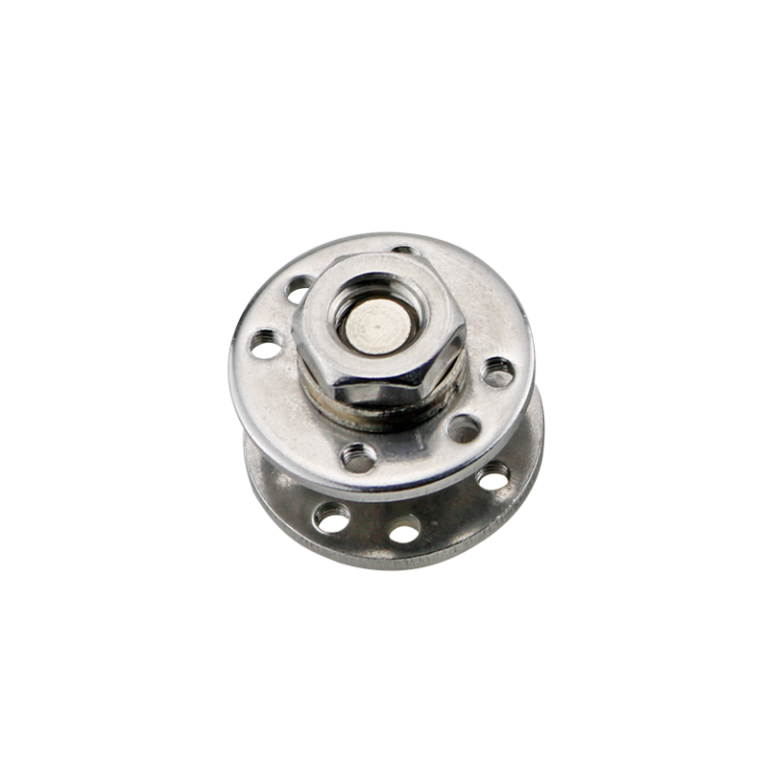

Swivel torque hinge is a mechanical component with a built-in torque adjustment structure that provides controlled resistance through internal springs or friction devices.

This resistance ensures that the door moves slowly and remains stable at any angle when opening or closing the enclosure door, without the need for additional support.

The difference with ordinary hinges is mainly reflected in two aspects:

Torque control:

While ordinary hinges only provide a turning function, swivel torque hinges can automatically adjust the amount of resistance according to the weight of the door panel.

Stepless positioning function:

The door panel can stay in any range from 0-360 degrees without installing a limiter or gas strut.

Typical Application Scenarios of Swivel Torque Hinge

1. Electrical control cabinets and distribution boxes

The door plate of industrial chassis is usually heavy, the use of swivel torque hinges can prevent the door from closing quickly due to gravity, to avoid pinching or equipment damage.

2. Automation equipment enclosure

In robotic arms, machining centers and other equipment, frequent opening and closing of the access door requires high durability hinges, torque design can reduce metal fatigue.

3. Outdoor communication equipment and protective enclosures

In the face of wind, sand and rain environment, stainless steel swivel torque hinges can provide IP65 or higher protection level to ensure long-term stable operation.

4. Medical instruments and clean equipment

High precision hinges with oil-free design are suitable for sterile environments, avoiding the contamination of sensitive areas by traditional hinge lubricants.

5. Railway transportation and special vehicles

Anti-vibration torque hinge can withstand severe vibration, to protect the normal use of vehicle cabinets in the bumpy environment.

The main advantages of swivel torque hinge

1. Smooth and slow control of switching action

Built-in torque system can offset the self-weight of the door plate to realize uniform movement and reduce impact noise.

2. Space-saving installation

No need to install additional air struts or limiters, simplifying the design of the chassis structure.

3. Improve operation safety

Avoid accidental sliding of the door to avoid workplace injuries, in line with industrial safety standards (such as OSHA standards).

4. Enhance equipment durability

High-quality stainless steel or zinc alloy material can withstand more than 100,000 times of opening and closing test, reduce maintenance frequency.

5. Optimize equipment appearance

Hidden hinge design makes the chassis surface more simple, suitable for high-end industrial equipment integration.

How to correctly select the swivel torque hinge

1. Torque parameter matching

Calculation formula: required torque (N-m) = door weight (kg) × gravitational acceleration (9.8m/s²) × door width (m) ÷ 2.

2. Material selection guide

304 stainless steel: suitable for daily humid and weak acid environment.
314 stainless steel: suitable for chemical and marine equipment.
Zinc alloy: cost-effective, suitable for indoor conventional chassis.
Engineering plastics: good insulation, used for medical or electronic equipment.

3. Environmental adaptability

High temperature environment: choose the model with temperature resistance range -40℃ to 120℃.
Outdoor scenario: need to meet IP67 protection level and have anti-UV coating.

4. Mounting method

Confirm the fixing type of the hinge (screw mount, welded or embedded) and measure the chassis plate thickness for compatibility.

5. Lifespan and Maintenance

Industrial grade swivel torque hinges should come with a minimum of 5 years warranty, and maintenance should only require periodic removal of surface dust.

Industry Standards and Certifications

1. Core International Standards

ISO 14738: Mechanical safety standard that regulates ergonomic requirements for hinges.
IEC 60529: defines test methods for IP protection level.

2. Common Certifications

RoHS/REACH: Ensure that materials are non-toxic and environmentally friendly.
IP rating certification: e.g. IP65 (dust and waterproof) is critical for outdoor enclosures.

3. Compliance Value

Certified swivel torque hinges reduce purchasing risk, especially in heavily regulated industries such as healthcare and energy.

Installation and Maintenance Points

1. Installation Recommendations

The hinge axis needs to be aligned with the center of gravity of the door panel to avoid uneven torque distribution.
Use a torque tester to calibrate to ensure uniform resistance.

2. Maintenance Precautions

Check the screw tightening status every 6 months.
Avoid using acidic cleaners to prevent corrosion of the surface coating.

FAQ

Q1: Can the swivel torque hinge adjust the torque value?

Yes, most models support changing the torque by adjusting the screws or replacing the springs (the range is usually 2-20N-m).

Q2: Can it be used to retrofit hinges to existing equipment?

Yes, but you need to make sure that the mounting holes match in size, and it is recommended that you choose a product with a multi-hole compatible design.

Q3: Will there be torque degradation in extremely cold areas?

Selecting models with special grease for low temperature (e.g. -50℃ environment) can guarantee stable performance.

Conclusion

As a core component of industrial chassis, swivel torque hinge directly affects the functionality, safety and service life of the equipment. Through reasonable selection and standardized installation, these hinges can significantly reduce operation and maintenance costs and enhance the end-user experience. Whether it is electrical control cabinets, medical equipment or rail transportation systems, choosing quality products that have passed international certification will bring long-term value to the enterprise.
