Hardware Solutions for Machine Access and Service Doors

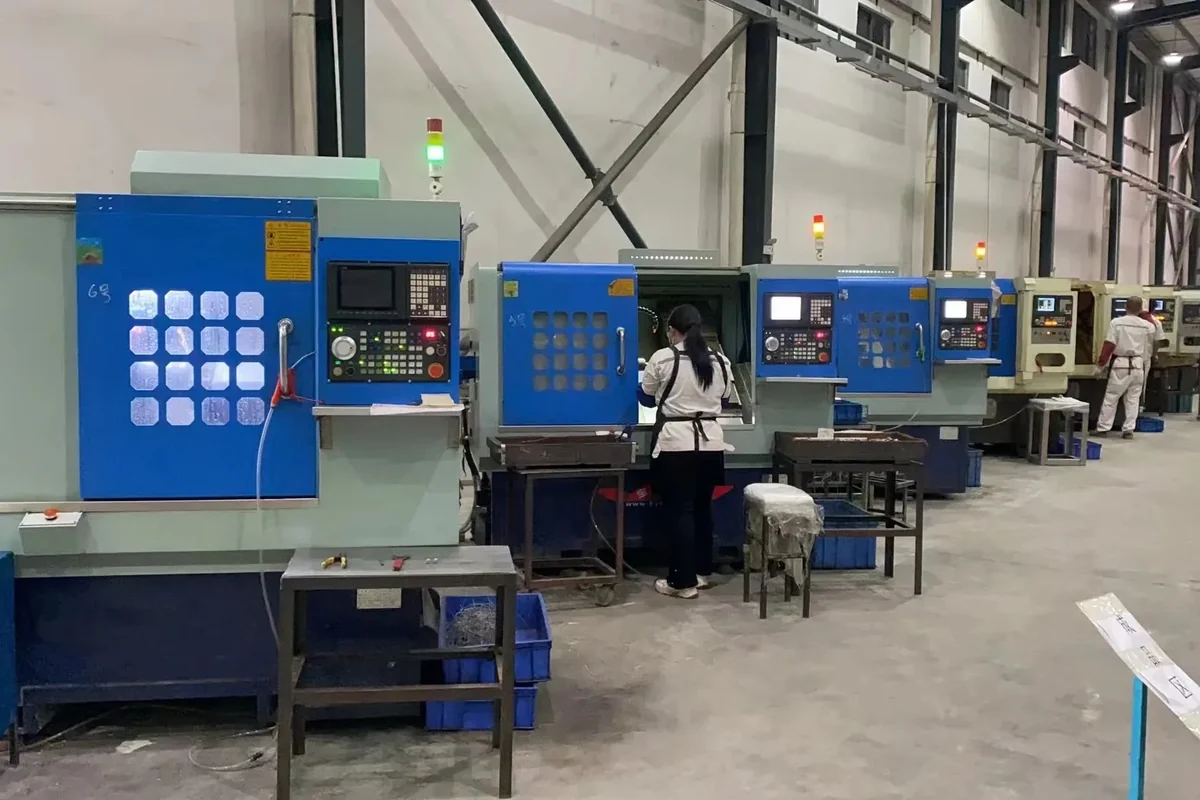

Start with how maintenance needs to reach the machine. Door movement, working clearance, removal and access frequency should be defined before narrowing the hinge, closure and handle direction.
Start With the Maintenance Task
Machine service door hardware should follow the work performed through the opening, not only the door size or an existing part number.
Routine Inspection & Adjustment
- Frequent access
- Door stays attached
- Fast opening and closing
- Limited tool work inside
The door should open repeatedly without creating unnecessary service steps.
Component Replacement
- Larger opening
- Tools and components pass through
- Door may need to move out of the way
The hardware must preserve working clearance during removal and replacement work.
Cleaning & Machine Setup
- Wide opening
- Repeated operator access
- Door position must not interfere
Opening direction, retained position and surrounding clearance become part of the hardware decision.
How Should the Door Behave During Service?
Stay Attached
Use when access is routine or frequent and the door remains part of the machine.
Confirm opening direction, hinge side, working clearance and closure method.
Remove Completely
Use when a large replacement or deep access task is blocked by the door.
Confirm removal direction, lifting or extraction clearance and service sequence.
Open to a Defined Limit
Use when an adjacent frame, guard, wall or machine component needs protection.
Confirm the maximum useful angle, available stop location and impact condition.
Remain Open During Work
Use when both hands are needed and the door must not swing back into the working area.
Confirm orientation, working position, environment and expected service behavior.

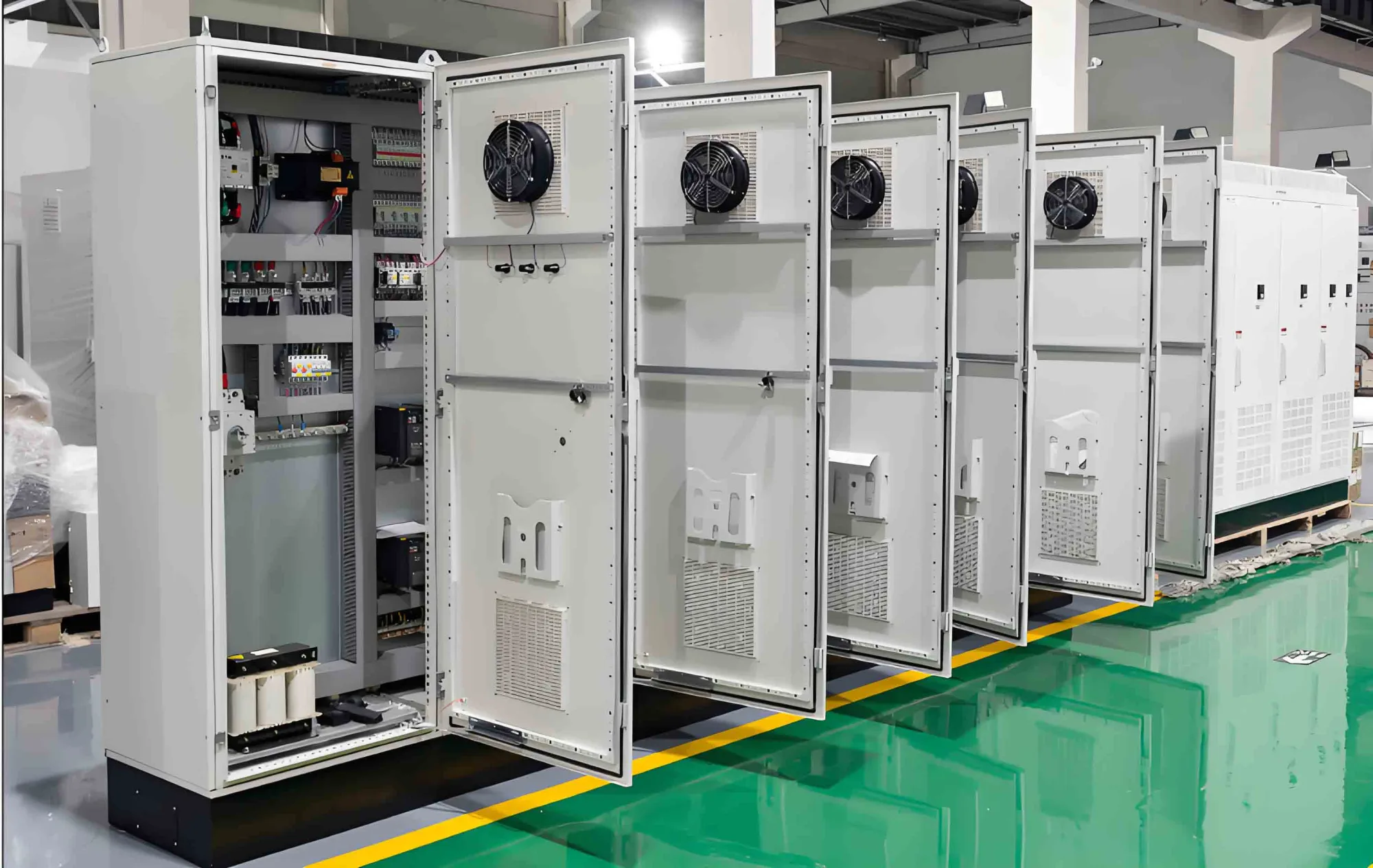

Check the Working Clearance Around the Opening
Equipment access door hardware affects the space left for the technician, tools and components after the opening is in use.
A service door is usable only if the open door leaves enough clear space for the technician, tools and component-removal path.
- Clear opening after the door is open
- Door swing into the aisle or machine space
- Nearby guard or structure
- Component removal path
- Tool access
Match the Hardware to the Service Requirement
Frequent Attached Access
Review Industrial Hinges, Industrial Latches and Pull Handles together so movement, closure and operator grip support the same service routine.
Door Must Be Removed
Review Removable Hinges when the complete opening must be cleared for component extraction or deep maintenance. A removable hinge improves maintenance access only when the installed machine provides enough clearance to lift or extract the door.
Large or Structurally Demanding Service Door
Heavy-Duty Hinges — Review when door size, mass or structural mounting makes a standard hinge direction uncertain.
Positive Closure or Vibration
Compare Industrial Latches with Draw Latches according to closure sequence, vibration and the way the operator releases the door.
Operator Grip
Place Pull Handles where the operator can open, guide and close the door without reducing the service opening.
Opening Control or Hold-Open
If the door must stop before reaching adjacent equipment or remain open during service, review the opening-control requirement separately from hinge support and door closure.
An opening limit and a hold-open requirement are separate functions and should be reviewed independently.
Hardware Options for Machine Service Doors
Mechanical Equipment Hinge HL055
For attached machine access doors used during routine inspection and adjustment.
View Product
Industrial equipment cabinet door release hinge CL231-3
For service doors that need to be removed when the maintenance opening must be fully cleared.
View Product
Black carbon steel heavy duty industrial equipment hinge CL108-2
For larger service doors where door size, mass or frame structure makes a standard hinge direction uncertain.
View Product
304 stainless steel Adjustable Draw Latches DK029
For service doors that need positive mechanical closure where vibration or repeated access is present.
View Product
Equipment Door Handle
For machine doors that need a clear operator grip during opening, guidance and closure.
View ProductKnow the door requirements but not the exact part?Request Pricing
Before You Request Pricing
Commercial details are confirmed against the selected hardware, quantity and application requirements.
- Pricing
- Pricing is quoted against the selected part, quantity and any non-standard requirements.
- Order Quantity
- Order quantity depends on the selected product and configuration. Include the expected quantity in your RFQ.
- Samples
- Samples can be discussed before production orders when applicable.
- Lead Time
- Lead time is confirmed with the quotation based on the selected product, quantity and production requirements.
- Quality Requirements
- Quality requirements can be reviewed against the selected product, drawing and order requirements before order confirmation.
- What Happens Next
- Send the product reference or application requirements. HTAN reviews the request and confirms the applicable quotation, sample and production details.
Common Machine Service Access Patterns

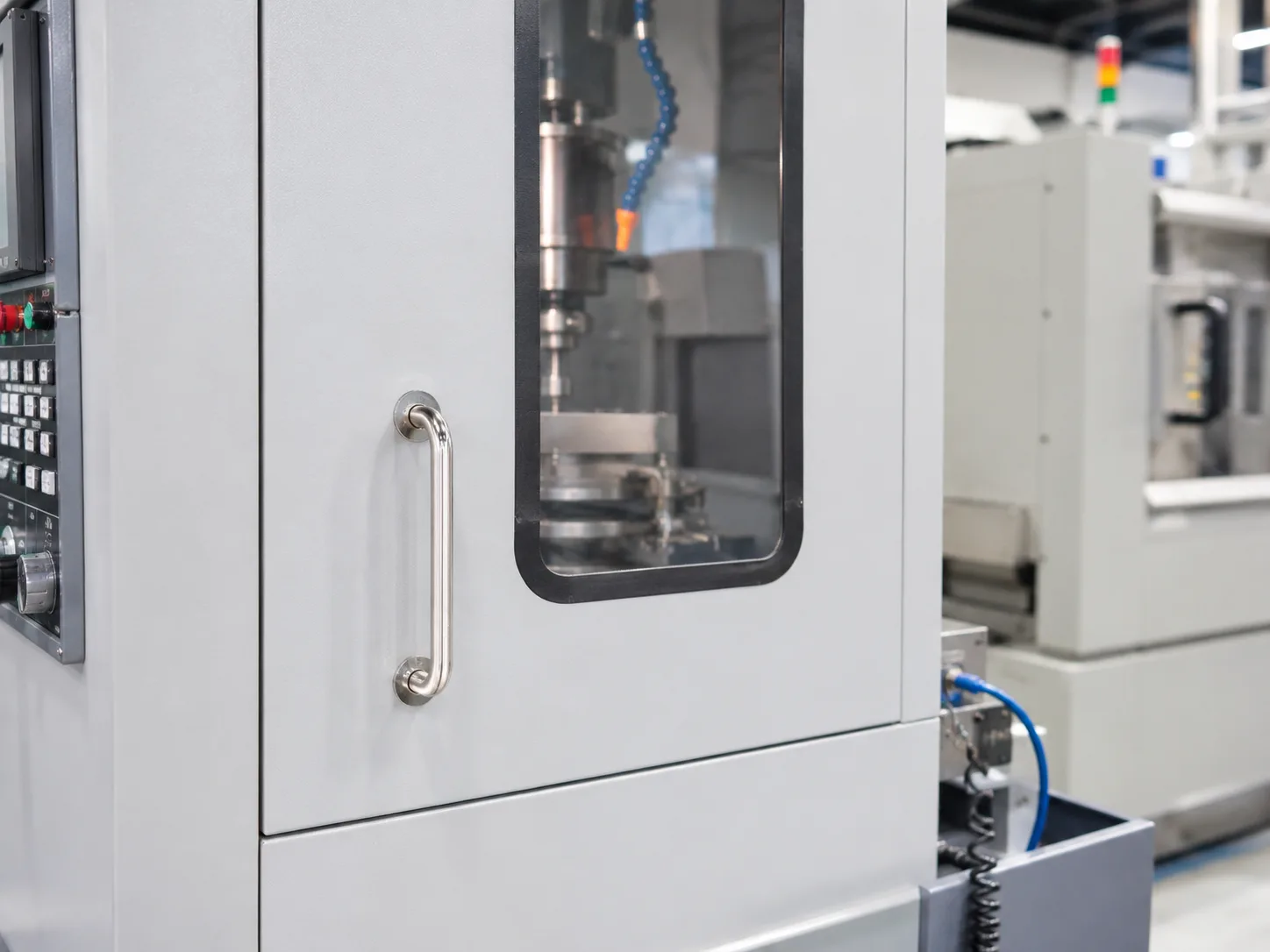

Inspection Door
Attached access for routine inspection and adjustment.

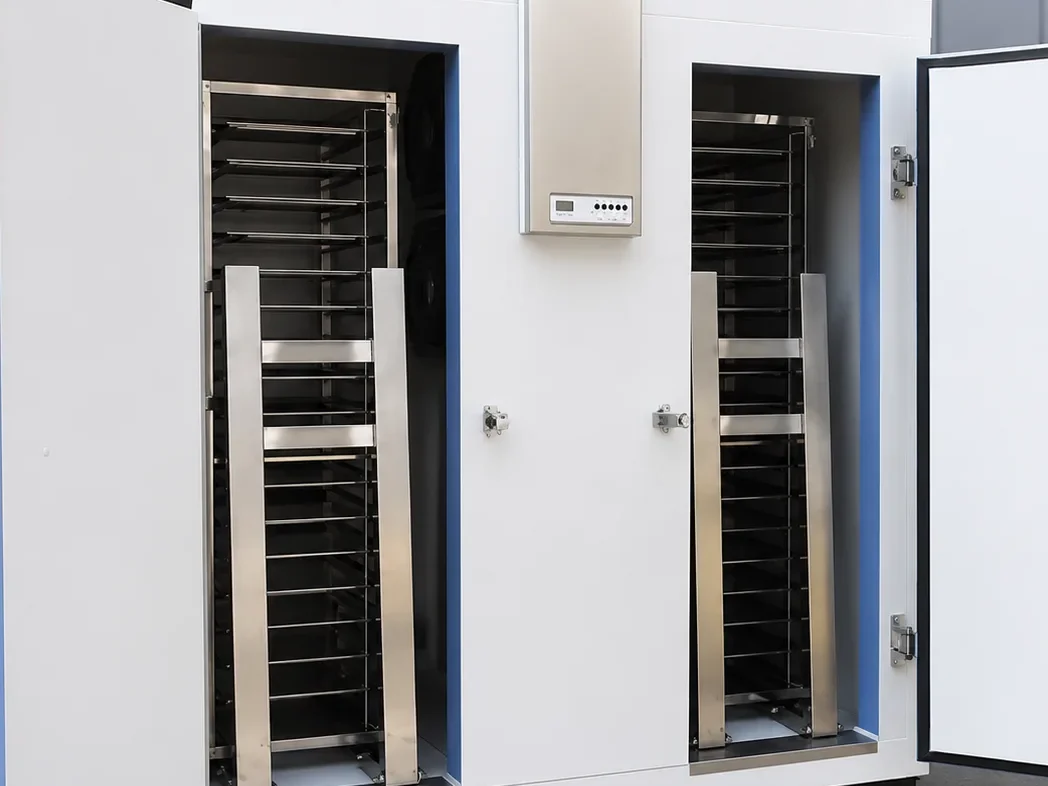

Removable Maintenance Panel
The opening can be cleared when deeper service is required.

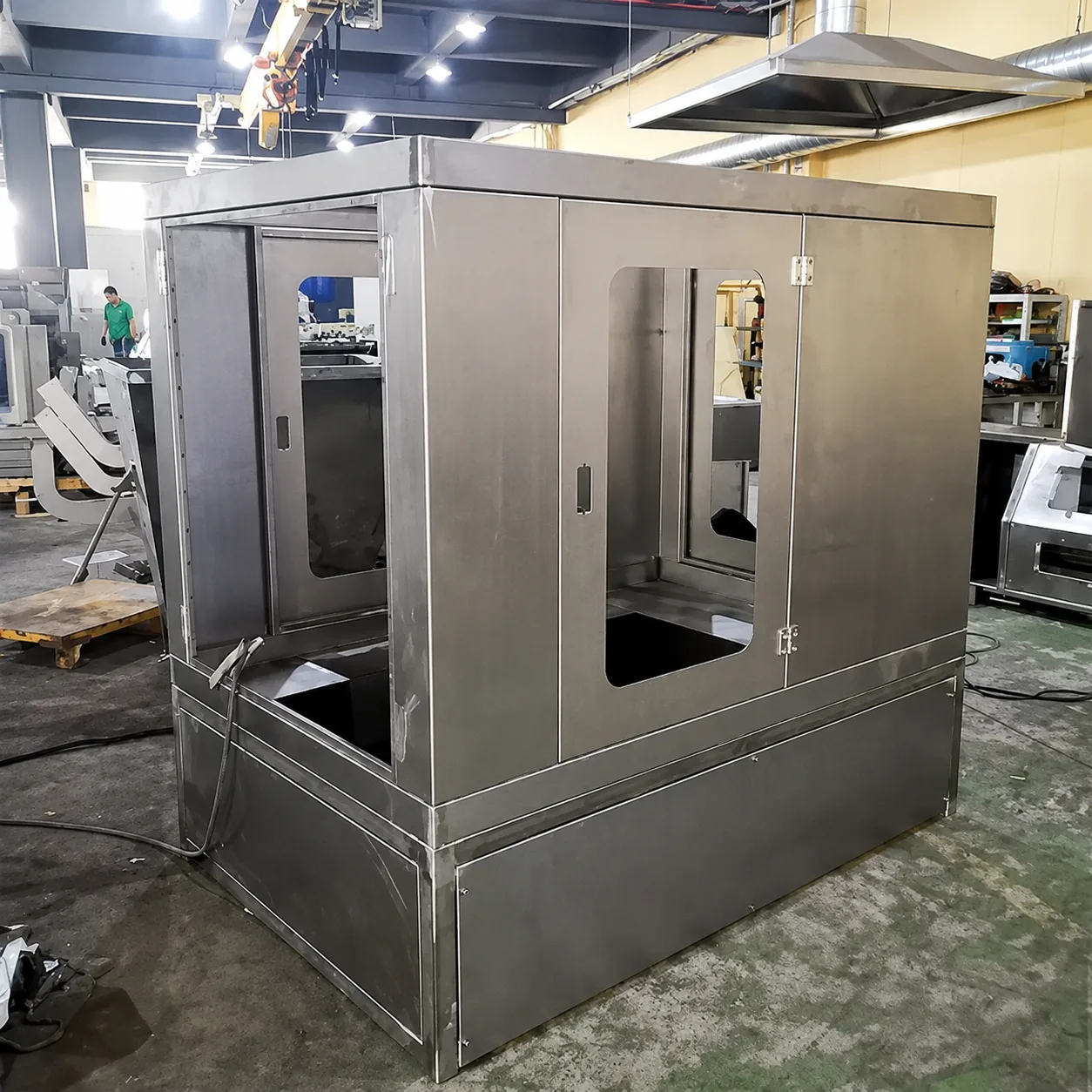

Large Machine Service Door
Door swing and surrounding structure must be reviewed together.
What to Send for a Machine Access Door Quote
A drawing is helpful for non-standard applications, but it is not required to start a quotation.
Opening / Door
- Opening width and height
- Door or panel size
- Approximate weight, if known
- Hinge side and opening direction
Maintenance Requirement
- Routine or major maintenance
- Door stays attached or is removable
- Desired position or angle, if known
- Obstruction or clearance information
Hardware / Commercial
- Existing reference, if available
- Closure and operator access
- Operating environment
- Expected quantity
- Photo or drawing, if available
Request Pricing for Your Machine Access Door Hardware
If the hardware is already specified, send the product reference and quantity. If the access door is still being defined, send the opening, service and clearance information already available.
After you submit
Send the information already available. We review the product or application requirements and confirm the applicable quotation and next commercial details.
